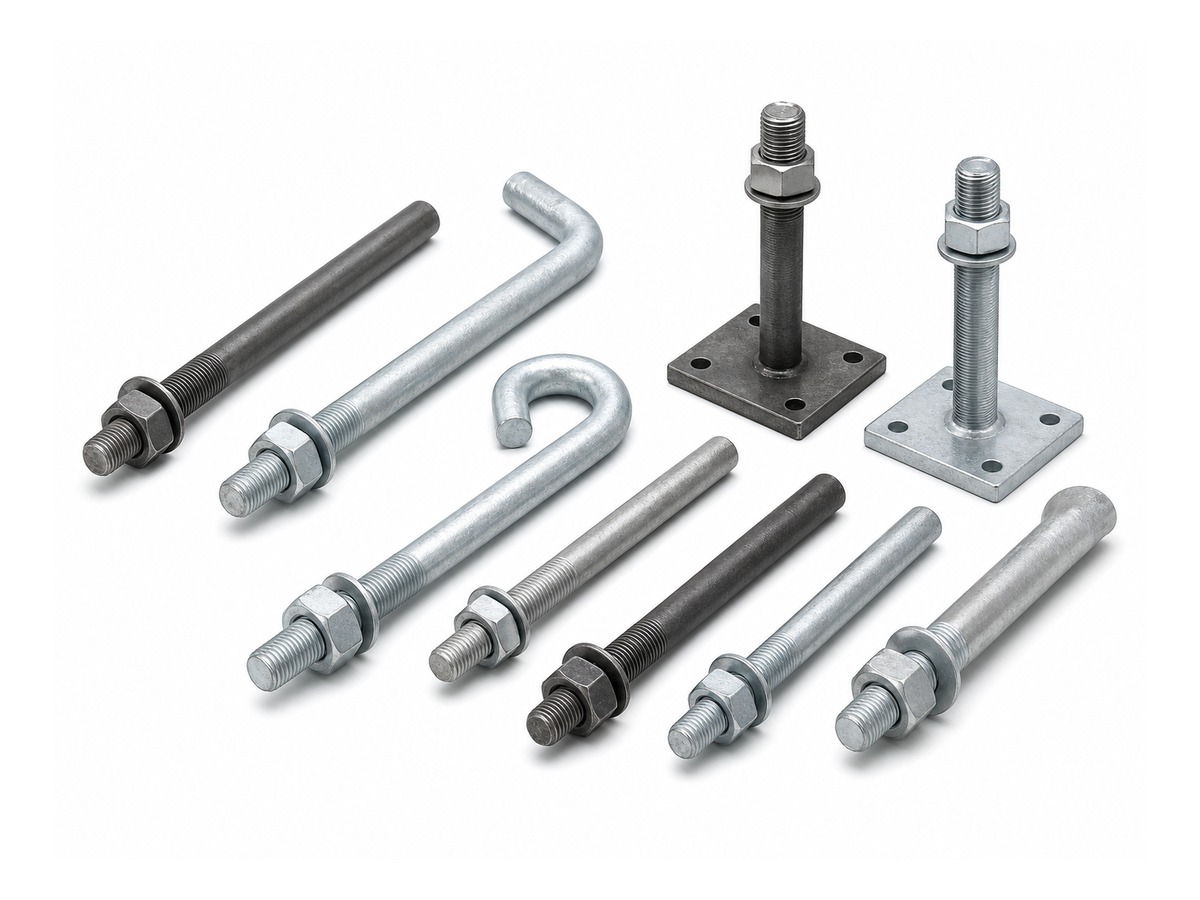

Custom Anchor Bolts & Foundation Bolts Made to Drawings
Custom anchor bolts and foundation bolts made to drawing or site specification, with diameter, length, thread length, matched nuts, plate washers, surface finish, export packing and construction application reviewed before quotation.Representative products
Representative Product Types
Use these product names as the starting point for RFQ by drawing, sample photo, basic size or project specification.
Product Information
- Product
- Anchor Bolts / Foundation Bolts
- Made to
- Drawing / specification / sample photo
- Materials
- Carbon Steel, Stainless Steel, Alloy Steel
- Surface finish
- Zinc Plating, Hot Dip Galvanizing, Passivation
- Size
- Diameter, total length, thread length, bend or hook geometry confirmed by drawing or project specification
- Packing
- Matched nut and plate washer sets, cartons, pallets, labels and project-set export packing
- Application
- Anchor bolts, Foundation bolts, L anchor bolts, J anchor bolts
Send drawings, samples, basic size or material requirements for RFQ review.
Assembly kit context
Representative Assembly Kits
These images show how separate fasteners, plates, brackets and support hardware can be grouped for RFQ. Himount supplies the metal parts made to drawings, not complete building systems.
Foundation and support fixing kits
Anchor rods, base plates, plate washers, nuts, gusset plates and matching installation hardware can be quoted as drawing-based kit groups.
Pre-installation hardware sets
Template plates, cable tray brackets, pipe clamp hangers, strut fittings and fastener sets help buyers understand how parts work together.
Custom bracket and stainless sets
Stamped brackets, stainless support hardware, embedded plates and formwork accessories can be matched by drawing, sample or specification.
Use these kit groups as a reference when sending drawings, sample photos, material, finish, quantity and target application.
Specifications
Key dimensions: Dimensions are confirmed from drawings or samples, including length, hole spacing, thickness, bore size, pitch, and end geometry where applicable.Material / surface: Carbon Steel, Stainless Steel, Alloy SteelTolerance control: DIN / ISO / ANSI / custom by drawingRecommended surface finish: Zinc Plating, Hot Dip Galvanizing, PassivationStandard / custom: Standard / Custom / OEM
Model / Standard Reference
China standard reference: matched against GB / GB/T or customer drawings when relevantLocal replacement reference: substitute codes can be reviewed from customer drawings or samplesInternational reference: ISO / DIN / ASTM / ANSI mapping is confirmed during RFQ reviewSample stage: English specifications can include tolerance, material, bore, hole spacing, and assembly notes
Surface Finish Notes
Available finishes: Zinc Plating, Hot Dip Galvanizing, PassivationRecommended matching: Carbon Steel / Stainless Steel / Alloy Steel; select corrosion resistance, strength requirement, wear resistance, and assembly fit by applicationOutdoor or humid use: prioritize corrosion-resistant finishesThreaded or fitted parts: confirm coating thickness and assembly clearanceVisible or handled parts: confirm appearance consistency, cleaning, and anti-rust packing
Technical parameters
Fastener Specifications
Use these parameters as the minimum RFQ basis before sending drawings or samples.| Product type | Anchor Bolts / Foundation Bolts |
|---|---|
| Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Manufacturing route | Cold Heading, Thread Rolling, Stamping, Assembly |
| Surface finish | Zinc Plating, Hot Dip Galvanizing, Passivation |
| Tolerance | DIN / ISO / ANSI / custom by drawing |
| RFQ basis | Drawing, sample, material, quantity, application, and packaging requirement |
Typical Applications

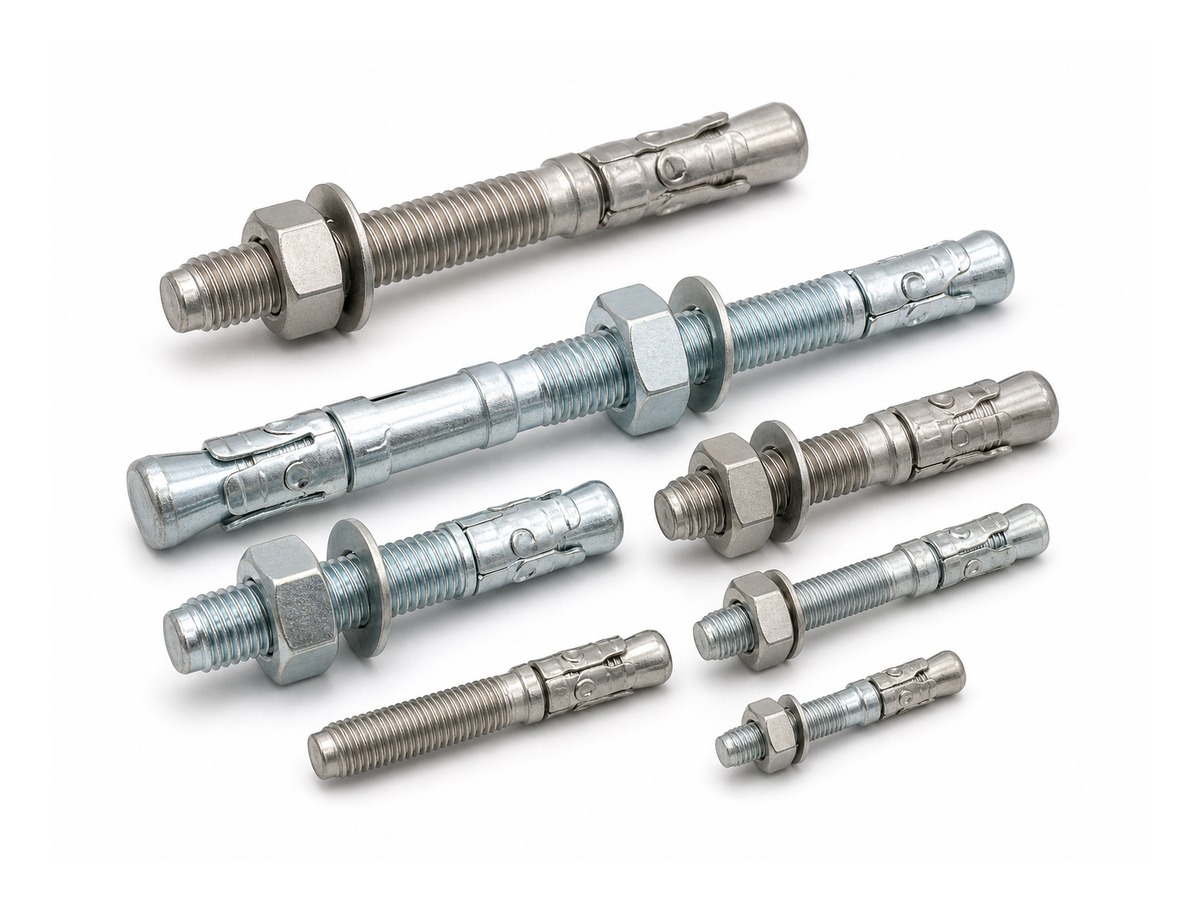

Anchor boltsFoundation boltsL anchor boltsJ anchor boltsWedge anchors
Product Advantages
Project set packingMatched nuts and plate washersOutdoor coating optionsStandard-like or drawing-based dimensions
Size Capability
Small precision partsMedium-size production partsLarger custom parts reviewed by drawing, material, tooling and quantity
Available Secondary Operations
Heat TreatmentThread lockingSortingAssemblyPackaging
Assembly & Packing Options
KittingWasher assemblyThread-lock patchSubassembly packing
To quote accurately, please provide:
StandardMaterialGradeThreadSurface finishSize rangePackingQuantity
RFQ Next Step
Send the drawing, key dimensions, quantity, tolerance, finish, application, and packing requirement so we can review the quotation accurately.
